Ubuntu OVAL data

Canonical’s Security Team produces Ubuntu OVAL, a structured, machine-readable dataset for all supported Ubuntu releases. It can be used to evaluate and manage security risks related to any existing Ubuntu components. It is based on the Open Vulnerability and Assessment Language (OVAL).

How Ubuntu OVAL data works

As software vulnerabilities are discovered, they are assigned CVE identifiers by MITRE and other organizations. Canonical triages these CVEs to determine whether the vulnerabilities affect software distributed within Ubuntu. The results of this triage are then used to generate the CVE OVAL. The CVE OVAL can be used to assess the local system for vulnerabilities.

When the Ubuntu Security Team patches software to address one or more CVEs, an Ubuntu Security Notice (USN) is published announcing the update. The USN OVAL data is generated from information encapsulated within the USN, and can be used to assess the system for missing patches.

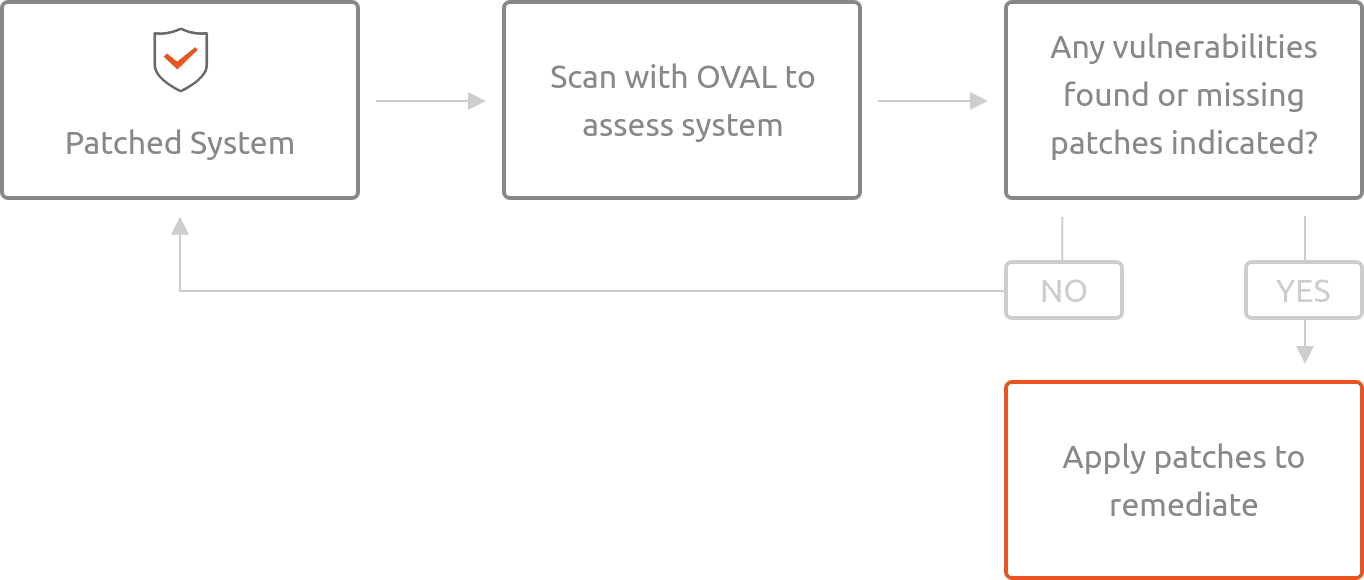

../../../_images/how-OVAL-data-works-diagram.webp

Using Ubuntu’s OVAL data

Using OpenSCAP

  1. Download the compressed XML:

wget https://security-metadata.canonical.com/oval/com.ubuntu.$(lsb_release -cs).usn.oval.xml.bz2

  1. Uncompress the data:

bunzip2 com.ubuntu.$(lsb_release -cs).usn.oval.xml.bz2

  1. Use OpenSCAP to evaluate the OVAL and generate an html report:

oscap oval eval --report report.html com.ubuntu.$(lsb_release -cs).usn.oval.xml

  1. The output is generated in the file report.html, open it using your browser:

xdg-open report.html

  1. File naming convention:

com.ubuntu.<example release name>.usn.oval.xml.bz2

Scanning an Official Cloud Image

To scan an Ubuntu Official Cloud Image for known vulnerabilities, the manifest file and xml data can be used together. Unlike above where we were able to use the lsb_release command, you will need to manually enter the URL for the OVAL data.

Note

In the example below we are using focal/20.04, you would replace ‘focal’ with the version you are inspecting.

  1. Download an Ubuntu image:

wget https://security-metadata.canonical.com/oval/oci.com.ubuntu.focal.usn.oval.xml.bz2
bunzip2 oci.com.ubuntu.focal.usn.oval.xml.bz2

  1. Download the manifest file for the image

wget -O manifest https://cloud-images.ubuntu.com/releases/focal/release/ubuntu-20.04-server-cloudimg-amd64-root.manifest

  1. Use OpenSCAP to evaluate the OVAL and generate an html report

oscap oval eval --report report.html oci.com.ubuntu.focal.usn.oval.xml

  1. The output is generated in the file report.html, open it using your browser

xdg-open report.html

  1. File naming convention:

oci.com.ubuntu.<example release name>.usn.oval.xml.bz2

Ubuntu OVAL data parameters

Parameter

Description

CVE_ID

CVE number as reported by MITRE

USN

Corresponding Ubuntu Security Notice

Description

A short description of the security risk addressed

Severity

CVE or USN severity as defined by the Ubuntu Security team

Affected Platform

Affected Ubuntu release(s), incl ESM

Title

CVE number, affected Ubuntu release(s), and Severity

Public date

The date on which a CVE was publicly announced

Public date of USN

The date on which a USN was published

Reference

Links to more information about the issue

BugReport

Link to bugreport about the issue

Note

The above parameters are included in the OVAL xml file, but not all are shown in the resulting generated OpenSCAP report.
