How to manage storage pools

See the following sections for instructions on how to create, configure, view and resize Storage pools.

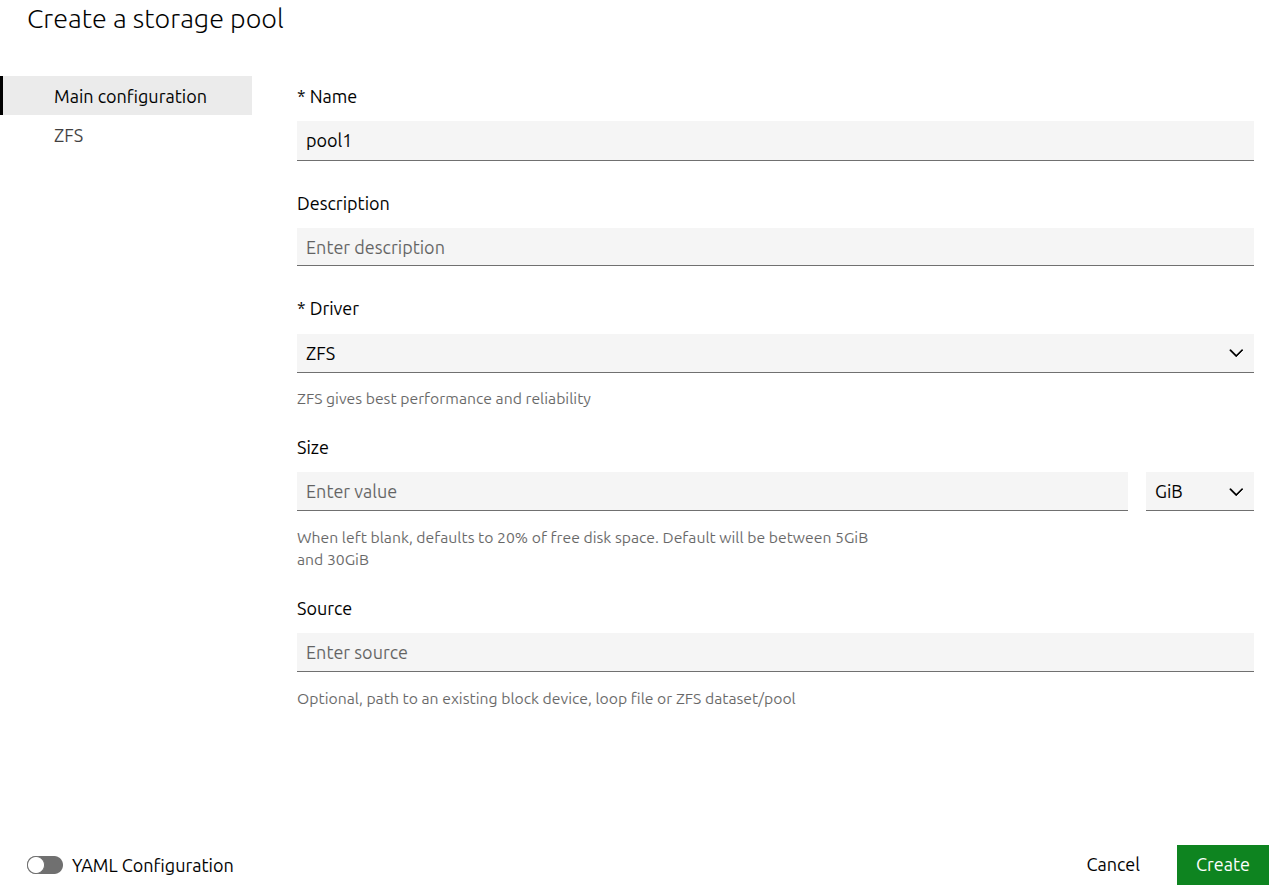

Create a storage pool

LXD creates a storage pool during initialization. You can add more storage pools later, using the same driver or different drivers.

For Ceph-based storage pools, first see the Requirements for Ceph-based storage pools section.

To create a storage pool, use the following command:

lxc storage create <pool_name> <driver> [configuration_options...]

See the Storage drivers documentation for a list of available configuration options for each driver.

By default, LXD sets up loop-based storage with a sensible default size/quota: 20% of the free disk space, with a minimum of 5 GiB and a maximum of 30 GiB.

Examples

The following examples demonstrate how to create a storage pool using different types of storage drivers.

Create a directory pool

Create a directory pool named pool1:

lxc storage create pool1 dir

Use the existing directory /data/lxd for pool2:

lxc storage create pool2 dir source=/data/lxd

Create a Btrfs pool

Create a loop-backed pool named pool1:

lxc storage create pool1 btrfs

Use the existing Btrfs file system at /some/path for pool2:

lxc storage create pool2 btrfs source=/some/path

Create a pool named pool3 on /dev/sdX:

lxc storage create pool3 btrfs source=/dev/sdX

Create an LVM pool

Create a loop-backed pool named pool1 (the LVM volume group will also be called pool1):

lxc storage create pool1 lvm

Use the existing LVM volume group called my-pool for pool2:

lxc storage create pool2 lvm source=my-pool

Use the existing LVM thin pool called my-pool in volume group my-vg for pool3:

lxc storage create pool3 lvm source=my-vg lvm.thinpool_name=my-pool

Create a pool named pool4 on /dev/sdX (the LVM volume group will also be called pool4):

lxc storage create pool4 lvm source=/dev/sdX

Create a pool named pool5 on /dev/sdX with the LVM volume group name my-pool:

lxc storage create pool5 lvm source=/dev/sdX lvm.vg_name=my-pool

Create a ZFS pool

Create a loop-backed pool named pool1 (the ZFS zpool will also be called pool1):

lxc storage create pool1 zfs

Create a loop-backed pool named pool2 with the ZFS zpool name my-tank:

lxc storage create pool2 zfs zfs.pool_name=my-tank

Use the existing ZFS zpool my-tank for pool3:

lxc storage create pool3 zfs source=my-tank

Use the existing ZFS dataset my-tank/slice for pool4:

lxc storage create pool4 zfs source=my-tank/slice

Use the existing ZFS dataset my-tank/zvol for pool5 and configure it to use ZFS block mode:

lxc storage create pool5 zfs source=my-tank/zvol volume.zfs.block_mode=yes

Create a pool named pool6 on /dev/sdX (the ZFS zpool will also be called pool6):

lxc storage create pool6 zfs source=/dev/sdX

Create a pool named pool7 on /dev/sdX with the ZFS zpool name my-tank:

lxc storage create pool7 zfs source=/dev/sdX zfs.pool_name=my-tank

Ceph-based storage pools

For Ceph-based storage pools, first see the Requirements for Ceph-based storage pools.

Create a Ceph RBD pool

Create an OSD storage pool named pool1 in the default Ceph cluster (named ceph):

lxc storage create pool1 ceph

Create an OSD storage pool named pool2 in the Ceph cluster my-cluster:

lxc storage create pool2 ceph ceph.cluster_name=my-cluster

Create an OSD storage pool named pool3 with the on-disk name my-osd in the default Ceph cluster:

lxc storage create pool3 ceph ceph.osd.pool_name=my-osd

Use the existing OSD storage pool my-already-existing-osd for pool4:

lxc storage create pool4 ceph source=my-already-existing-osd

Use the existing OSD erasure-coded pool ecpool and the OSD replicated pool rpl-pool for pool5:

lxc storage create pool5 ceph source=rpl-pool ceph.osd.data_pool_name=ecpool

Create a CephFS pool

Note

Each CephFS file system consists of two OSD storage pools, one for the actual data and one for the file metadata.

Use the existing CephFS file system my-filesystem for pool1:

lxc storage create pool1 cephfs source=my-filesystem

Use the sub-directory my-directory from the my-filesystem file system for pool2:

lxc storage create pool2 cephfs source=my-filesystem/my-directory

Create a CephFS file system my-filesystem with a data pool called my-data and a metadata pool called my-metadata for pool3:

lxc storage create pool3 cephfs source=my-filesystem cephfs.create_missing=true cephfs.data_pool=my-data cephfs.meta_pool=my-metadata

Create a Ceph Object pool

A RADOS Gateway endpoint is required for a Ceph Object storage pool. See: Ceph Object and radosgw.

For a non-clustered LXD server, create pool1 by passing in a Ceph Object Gateway endpoint (the endpoint shown below is only an example; you must use your own):

lxc storage create pool1 cephobject cephobject.radosgw.endpoint=http://192.0.2.10:8080

If your LXD server is clustered, such as in a MicroCloud deployment, see: Create a storage pool in a cluster.

Create a Dell PowerFlex pool

Create a storage pool named pool1 using the PowerFlex pool sp1 in the protection domain pd1:

lxc storage create pool1 powerflex powerflex.pool=sp1 powerflex.domain=pd1 powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo

Create a storage pool named pool2 using the ID of PowerFlex pool sp1:

lxc storage create pool2 powerflex powerflex.pool=<ID of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo

Create a storage pool named pool3 that uses PowerFlex volume snapshots (see Limitations) when creating volume copies:

lxc storage create pool3 powerflex powerflex.snapshot_copy=true powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo

Create a storage pool named pool4 that uses a PowerFlex gateway with a certificate that is not trusted:

lxc storage create pool4 powerflex powerflex.gateway.verify=false powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo

Create a storage pool named pool5 that explicitly uses the PowerFlex SDC:

lxc storage create pool5 powerflex powerflex.mode=sdc powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo

Create a Pure Storage pool

Create a storage pool named pool1 that uses NVMe/TCP by default:

lxc storage create pool1 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token>

Create a storage pool named pool2 that uses a Pure Storage gateway with a certificate that is not trusted:

lxc storage create pool2 pure pure.gateway=https://<pure-storage-address> pure.gateway.verify=false pure.api.token=<pure-storage-api-token>

Create a storage pool named pool3 that uses iSCSI to connect to Pure Storage array:

lxc storage create pool3 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=iscsi

Create a storage pool named pool4 that uses NVMe/TCP to connect to Pure Storage array via specific target addresses:

lxc storage create pool4 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=nvme pure.target=<target_address_1>,<target_address_2>

Create a storage pool in a cluster

If you are running a LXD cluster and want to add a storage pool, you must create the storage pool for each cluster member separately. The reason for this is that the configuration, for example, the storage location or the size of the pool, might be different between cluster members.

To create a storage pool via the CLI, start by creating a pending storage pool on each member with the --target=<cluster_member> flag and the appropriate configuration for the member.

Make sure to use the same storage pool name for all members. Then create the storage pool without specifying the --target flag to actually set it up.

Also see How to configure storage for a cluster.

Note

For most storage drivers, the storage pools exist locally on each cluster member. That means that if you create a storage volume in a storage pool on one member, it will not be available on other cluster members.

This behavior is different for Ceph-based storage pools (ceph, cephfs and cephobject) where each storage pool exists in one central location and therefore, all cluster members access the same storage pool with the same storage volumes.

Examples

See the following examples for different storage drivers for instructions on how to create local or remote storage pools in a cluster.

Create a local storage pool

Create a storage pool named my-pool using the ZFS driver at different locations and with different sizes on three cluster members:

~$ lxc storage create my-pool zfs source=/dev/sdX size=10GiB --target=vm01
Storage pool my-pool pending on member vm01
~$ lxc storage create my-pool zfs source=/dev/sdX size=15GiB --target=vm02
Storage pool my-pool pending on member vm02
~$ lxc storage create my-pool zfs source=/dev/sdY size=10GiB --target=vm03
Storage pool my-pool pending on member vm03
~$ lxc storage create my-pool zfs
Storage pool my-pool created

Create a remote or distributed storage pool

Create a storage pool named my-ceph-pool using the Ceph RBD driver and the on-disk name my-osd on three cluster members. Because the ceph.osd.pool_name configuration setting isn’t member-specific, it must be set when creating the actual storage pool:

~$ lxc storage create my-ceph-pool ceph --target=vm01
Storage pool my-ceph-pool pending on member vm01
~$ lxc storage create my-ceph-pool ceph --target=vm02
Storage pool my-ceph-pool pending on member vm02
~$ lxc storage create my-ceph-pool ceph --target=vm03
Storage pool my-ceph-pool pending on member vm03
~$ lxc storage create my-ceph-pool ceph ceph.osd.pool_name=my-osd
Storage pool my-ceph-pool created

Create a storage pool named my-cephobject-pool using the Ceph Object driver and a preconfigured RADOS Gateway endpoint (the endpoint shown below is only an example):

~$ lxc storage create my-cephobject-pool cephobject --target=vm01
Storage pool my-cephobject-pool pending on member vm01
~$ lxc storage create my-cephobject-pool cephobject --target=vm02
Storage pool my-cephobject-pool pending on member vm02
~$ lxc storage create my-cephobject-pool cephobject --target=vm03
Storage pool my-cephobject-pool pending on member vm03
~$ lxc storage create my-cephobject-pool cephobject cephobject.radosgw.endpoint=http://192.0.2.10:8080
Storage pool my-cephobject-pool created

Create a storage pool named my-powerflex-pool using the Dell PowerFlex driver in SDC mode and the pool sp1 in protection domain pd1:

~$ lxc storage create my-powerflex-pool powerflex --target=vm01
Storage pool my-powerflex-pool pending on member vm01
~$ lxc storage create my-powerflex-pool powerflex --target=vm02
Storage pool my-powerflex-pool pending on member vm02
~$ lxc storage create my-powerflex-pool powerflex --target=vm03
Storage pool my-powerflex-pool pending on member vm03
~$ lxc storage create my-powerflex-pool powerflex powerflex.mode=sdc powerflex.pool=sp1 powerflex.domain=pd1 powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Storage pool my-powerflex-pool created

Create a storage pool named my-purestorage-pool using the Pure Storage driver:

~$ lxc storage create my-purestorage-pool pure --target=vm01
Storage pool my-purestorage-pool pending on member vm01
~$ lxc storage create my-purestorage-pool pure --target=vm02
Storage pool my-purestorage-pool pending on member vm02
~$ lxc storage create purestorage-pool pure --target=vm03
Storage pool purestorage-pool pending on member vm03
~$ lxc storage purestorage-pool pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token>
Storage pool purestorage-pool created

Configure storage pool settings

See the Storage drivers documentation for the available configuration options for each storage driver.

General keys for a storage pool (like source) are top-level. Driver-specific keys are namespaced by the driver name.

Use the following command to set configuration options for a storage pool:

lxc storage set <pool_name> <key> <value>

For example, to turn off compression during storage pool migration for a dir storage pool, use the following command:

lxc storage set my-dir-pool rsync.compression false

You can also edit the storage pool configuration by using the following command:

lxc storage edit <pool_name>

View storage pools

You can display a list of all available storage pools and check their configuration.

Use the following command to list all available storage pools:

lxc storage list

The resulting table contains the storage pool that you created during initialization (usually called default or local) and any storage pools that you added.

To show detailed information about a specific pool, use the following command:

lxc storage show <pool_name>

To see usage information for a specific pool, run the following command:

lxc storage info <pool_name>

Resize a storage pool

If you need more storage, you can increase the size (quota) of your storage pool. You can only grow the pool (increase its size), not shrink it.

In the CLI, resize a storage pool by changing the size configuration key:

lxc storage set <pool_name> size=<new_size>

This will only work for loop-backed storage pools that are managed by LXD.

Requirements for Ceph-based storage pools

For Ceph-based storage pools, the requirements below must be met before you can Create a storage pool or Create a storage pool in a cluster.

Ceph cluster

Before you can create a storage pool that uses the Ceph RBD, CephFS, or Ceph Object driver, you must have access to a Ceph cluster.

To deploy a Ceph cluster, we recommend using MicroCloud. If you have completed the default MicroCloud setup, you already have a Ceph cluster deployed through MicroCeph, so this requirement is met. MicroCeph is a lightweight way of deploying and managing a Ceph cluster.

If you do not use MicroCloud, set up a standalone deployment of MicroCeph before you continue.

Ceph Object and radosgw

Storage pools that use the Ceph Object driver require a Ceph cluster with the RADOS Gateway (also known as RGW or radosgw) enabled.

Check if radosgw is already enabled

To check if the RADOS Gateway is already enabled in MicroCeph, run this command from one of its cluster members:

microceph status

In the output, look for a cluster member with rgw in its Services list.

Example:

root@micro1:~# microceph status
MicroCeph deployment summary:- micro1 (192.0.2.10)  Services: mds, mgr, mon, rgw, osd  Disks: 1- micro2 (192.0.2.20)  Services: mds, mgr, mon, osd  Disks: 1

In the output above, notice rgw in the list of Services for micro1. This means that this cluster member is running the RADOS Gateway.

Look for rgw in your output. If you do not see it, you must Enable radosgw.

If you do see it, you’ll need the corresponding port number. On the cluster member with the rgw service, run:

sudo ss -ltnp | grep radosgw

Example:

root@micro1:~# sudo ss -ltnp | grep radosgw
LISTEN 0      4096         0.0.0.0:8080      0.0.0.0:*    users:(("radosgw",pid=11345,fd=60))LISTEN 0      4096            [::]:8080         [::]:*    users:(("radosgw",pid=11345,fd=61))

The output above shows that the radosgw port number is 8080.

Enable radosgw

If you did not find rgw in the Services list for any of your cluster members in the output from microceph status, then you must enable the RADOS Gateway. On one of the Ceph cluster members, run:

sudo microceph enable rgw --port 8080

We include the --port 8080 flag because if unspecified, the default port is 80. This default is a commonly used port number that can often cause conflicts with other services. You are not required to use 8080 — if needed, use a different port number.

The RADOS Gateway endpoint

The full RADOS Gateway endpoint includes the HTTP protocol, the IP address of the Ceph cluster member where the rgw service is enabled, and the port number specified. Example: http://192.0.2.10:8080.
