Create an Ubuntu Core image¶

Note

Dedicated Snap Store configuration contains information relating to the specific configuration of your Dedicated Snap Store.

Warning

Example values are provided for store configuration in this document. If you are a Dedicated Snap Store customer, you will be provided with a set of documentation with the details of your store.

To validate that the store was provisioned correctly, and that you are able to access it, we recommend creating and booting an Ubuntu Core image on amd64.

Note

You may need to initialise LXD with lxd init –auto before proceeding with some of the following steps.

Creating the gadget snap¶

The first step in building an Ubuntu Core image that can communicate with your store is to build a gadget snap. Gadget snaps do many things, but for our purposes here, the important functionality is generating a serial number and using that serial number, along with a pre-shared API key, to get credentials to talk to the store. You can also use the gadget snap to set default configuration values for application snaps.

To build a custom gadget snap, we start by selecting a suitable candidate from the Canonical supported gadgets and see follow the instructions on gadget building.

For this particular case, validating the initial store setup, let’s use the pc-amd64-gadget. This gadget enables the device to request store credentials from the Serial Vault, as configured above.

user@host:~$

sudo snap install snapcraft --classic

Note

As the gadget snap provides a means to provision static snap configuration for the seeded snaps in an image, multiple gadget snaps may be required for different models. Please see the gadget specification for more details on how to provide default snap and/or system configuration for your models. It’s also possible to use a single gadget for multiple devices if there are no configuration differences. If you do this, please be aware that you’ll need to ensure that the models in the Serial Vault are associated with the same API KEY.

user@host:~$

sudo apt update

user@host:~$

sudo apt install -y git

user@host:~$

git clone -b 24 https://github.com/snapcore/pc-gadget acme

user@host:~$

cd acme

Update the name field in the snapcraft.yaml to acme-pc. Update the value of the MODEL_APIKEY environment variable in the snapcraft.yaml to the value generated during the Serial Vault setup above. Feel free to also adjust the version, summary and description to be more meaningful in your context.

Build the snap:

user@host:~$

sudo snapcraft

...
Snapped acme-pc_24_amd64.snap

Note

The sample “product_serial” is loosely generated (date -Is) in this gadget (in snap/hooks/prepare-device). In production the serial number should be derived from a value inserted during the factory process, or from a unique hardware identifier, for uniqueness and traceability. See the dmidecode guidance for an example of how to modify the gadget to use dmidecode (x86 only) to read the serial number from the DMI table.

Now register the snap name in your Base Snap Store and push the initial revision:

user@host:~$

snapcraft whoami

email:        [email protected]
developer-id: brand-account

user@host:~$

snapcraft register acme-pc --store=acme-store

...
you, and be the software you intend to publish there? [y/N]: y
Registering acme-pc.
Congrats! You are now the publisher of 'acme-pc'.

user@host:~$

snapcraft push acme-pc_24_amd64.snap

The Store automatic review failed.
A human will soon review your snap, but if you can't wait please write in the snapcraft forum asking for the manual review explicitly.

If you need to disable confinement, please consider using devmode, but note that devmode revision will only be allowed to be released in edge and beta channels.
Please check the errors and some hints below:
  - (NEEDS REVIEW) type 'gadget' not allowed

Note

The Brand Account must be a Publisher under Manage Users and their roles to register and publish the gadget snap. However, as previously mentioned, once the gadget snap has been registered, publishing the snap should be left to collaborators. Also please ensure that when registering your gadget snap, you set the visibility of your gadget snap to Public. This only affects visibility of the snap to authorized devices and/or developers, it does not make the snap visible to the outside world. You can check the visibility of your snaps at https://snapcraft.io/snaps.

Log into the web dashboard as admin@acme.com (because it has the Reviewer role on the acme id store), access the reviews page and Approve the gadget revision.

Note

One other important capability of the Reviewer role is the ability to grant “self-serve” interface connections for snaps published in the Dedicated Snap Store. See Self-serve Snap Interfaces for more details.

Once the revision is approved, use snapcraft to release it in the stable channel:

user@host:~$

snapcraft whoami

email:        [email protected]
developer-id: brand-account

user@host:~$

snapcraft release acme-pc 1 stable

Track    Arch    Channel    Version    Revision
latest   all     stable     24     1
                 candidate  ^          ^
                 beta       ^          ^
                 edge       ^          ^
The 'stable' channel is now open.

The gadget snap is now available for installation from the Alpha 3 store, and for inclusion in images.

Creating the model assertion¶

One final step before you can build a custom Ubuntu Core image is creation of a signed model assertion, which provides image related metadata which ubuntu-image uses to customize the image. In order to sign the model assertion, a brand model key must be created and registered using the brand account. For details on how to create and register a model key, please refer to Sign a model assertion.

Example model assertions can be found here. This tutorial provides an example model assertion below. Once a valid model key is available, create and sign the model assertion for your test Ubuntu Core image:

user@host:~$

cat << EOF > alpha-model.json

{
  "type": "model",
  "authority-id": "brand-account",
  "brand-id": "brand-account",
  "series": "16",
  "model": "alpha",
  "store": "acme-id",
  "architecture": "amd64",
  "base": "core24",
  "grade": "signed",
  "snaps": [
    {
      "default-channel": "latest/stable",
      "id": "<CUSTOMER_SNAP_IDS>",
      "name": "acme-pc",
      "type": "gadget"
    },
    {
      "default-channel": "24/stable",
      "id": "pYVQrBcKmBa0mZ4CCN7ExT6jH8rY1hza",
      "name": "pc-kernel",
      "type": "kernel"
    },
    {
      "default-channel": "latest/stable",
      "id": "dwTAh7MZZ01zyriOZErqd1JynQLiOGvM",
      "name": "core24",
      "type": "base"
    },
    {
      "default-channel": "latest/stable",
      "id": "PMrrV4ml8uWuEUDBT8dSGnKUYbevVhc4",
      "name": "snapd",
      "type": "snapd"
    },
    {
      "name": "console-conf",
      "type": "app",
      "default-channel": "24/stable",
      "id": "ASctKBEHzVt3f1pbZLoekCvcigRjtuqw",
      "presence": "optional"
    },
    {
      "default-channel": "latest/stable",
      "id": "<CUSTOMER_SNAP_IDS>",
      "name": "<CUSTOMER_REQUIRED_SNAPS>",
      "type": "app"
    }
  ],
  "timestamp": "$(date +%Y-%m-%dT%TZ)"
}
EOF

user@host:~$

snapcraft list-keys

    Name          SHA3-384 fingerprint
*   serial        <fingerprint>
*   model         <fingerprint>

user@host:~$

snap sign -k model alpha-model.json > alpha-model.assert

Note

The timestamp for model assertion MUST be after the date of the model signing key being registered.

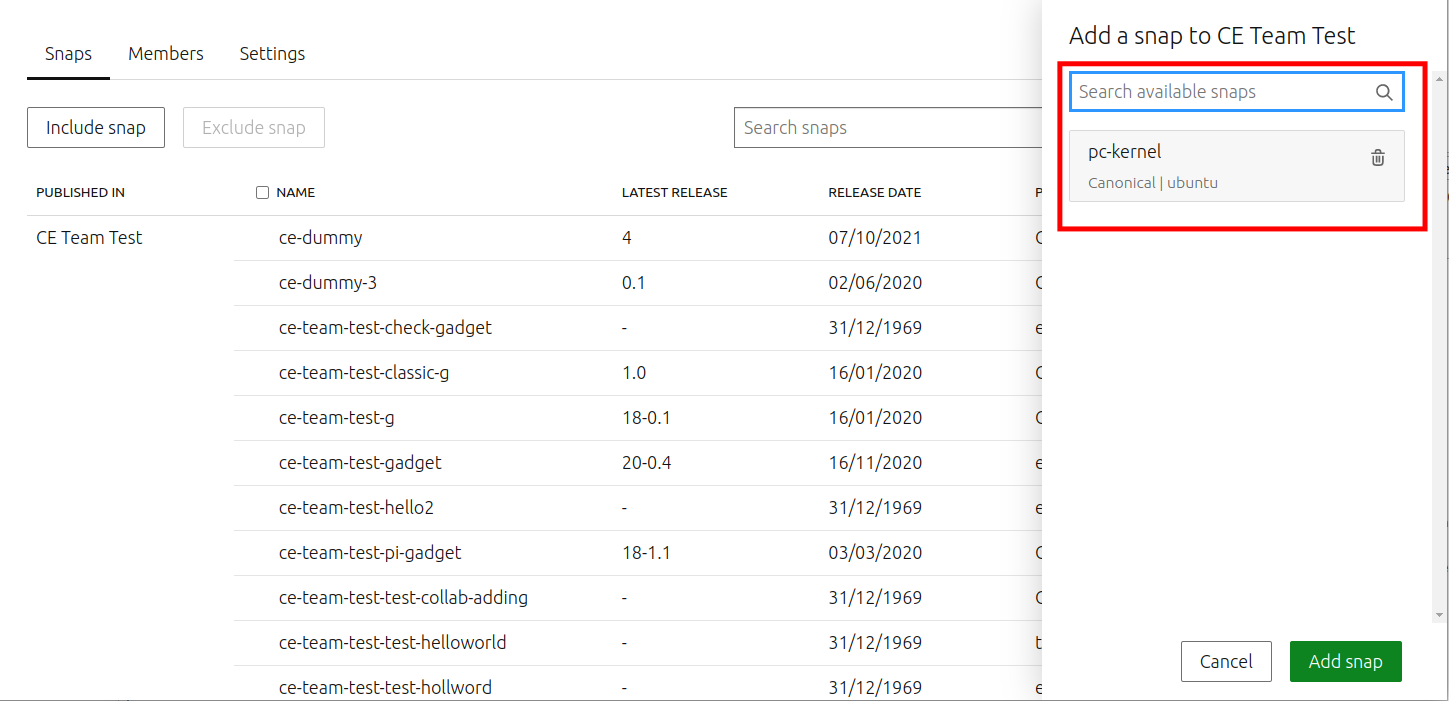

Log in to the web dashboard as admin@acme.com (because it has the Admin role on the acme id store), access the View and manage snaps page. Use the “Include snap” dialog to ensure that all snaps listed in the model assertion but published in the Global Snap Store (like pc-kernel in this case) get included in your Dedicated Snap Store. The core, core18, core20, core22, core24 and snapd snaps are included automatically and cannot be removed.

Access the snap page https://dashboard.snapcraft.io/snaps/<prefix>-pc to get the snap-id and fill the fields <CUSTOMER_SNAP_IDS> and <CUSTOMER_REQUIRED_SNAPS>.

Switching to a developer account¶

Now that the model has been signed by the Brand Account, there is no need to continue to use such powerful credentials. We recommend switching to a developer account to seed images.

The account used must have the Viewer role on the acme id store. Log in to the web dashboard as admin@acme.com (because it has the Admin role on the acme id store), go to “Manage Users and their roles” to add a developer account and then set it as Viewer. You may also give admin@acme.com the Viewer role.

Set up authentication for downloading snaps from the acme id store:

user@host:~$

snapcraft whoami

email:        viewer@acme
developer-id: acme-viewer

user@host:~$

snapcraft export-login --acls package_access store.auth

Enter your Ubuntu One e-mail address and password.
...
This exported login is not encrypted. Do not commit it to version control!

Note

Exported credentials have a default expiration of 12 months, so (a) treat them with care, and (b) note that they may need to be refreshed sometime in the future.

Creating the image¶

This section describes the details of Ubuntu Core image building against the acme id store.

Ensure a Linux LTS environment and tool for building images are both available:

user@host:~$

sudo snap install ubuntu-image --classic

...

In order for ubuntu-image to able to access snaps from your private store, you need to provide your developer credentials using one of the following environment variables:

UBUNTU_STORE_AUTH - this must be set to the actual contents of the file (e.g. store.auth) containing your exported developer credentials.
UBUNTU_STORE_AUTH_DATA_FILENAME - this must be set to the path of the file containing your exported developer credentials.

The Ubuntu Core image is built in the one line instruction by using the above developer account credential:

user@host:~$

UBUNTU_STORE_AUTH=$(cat store.auth) ubuntu-image snap alpha-model.assert

...

Launching and verifying the image¶

To launch and test your newly generated Ubuntu Core image, follow the steps here: Ubuntu Core: Testing with QEMU. Once the image is booted and installed, you can log in then verify if the seeded snaps are installed, the alpha model is correct and a serial assertion was obtained:

Note

The following shows the expected output for a Ubuntu Core 24 image.
